Weld Overlaid Cyclones

  • System of (8) disengager cyclones with riser, dipleg and valves.

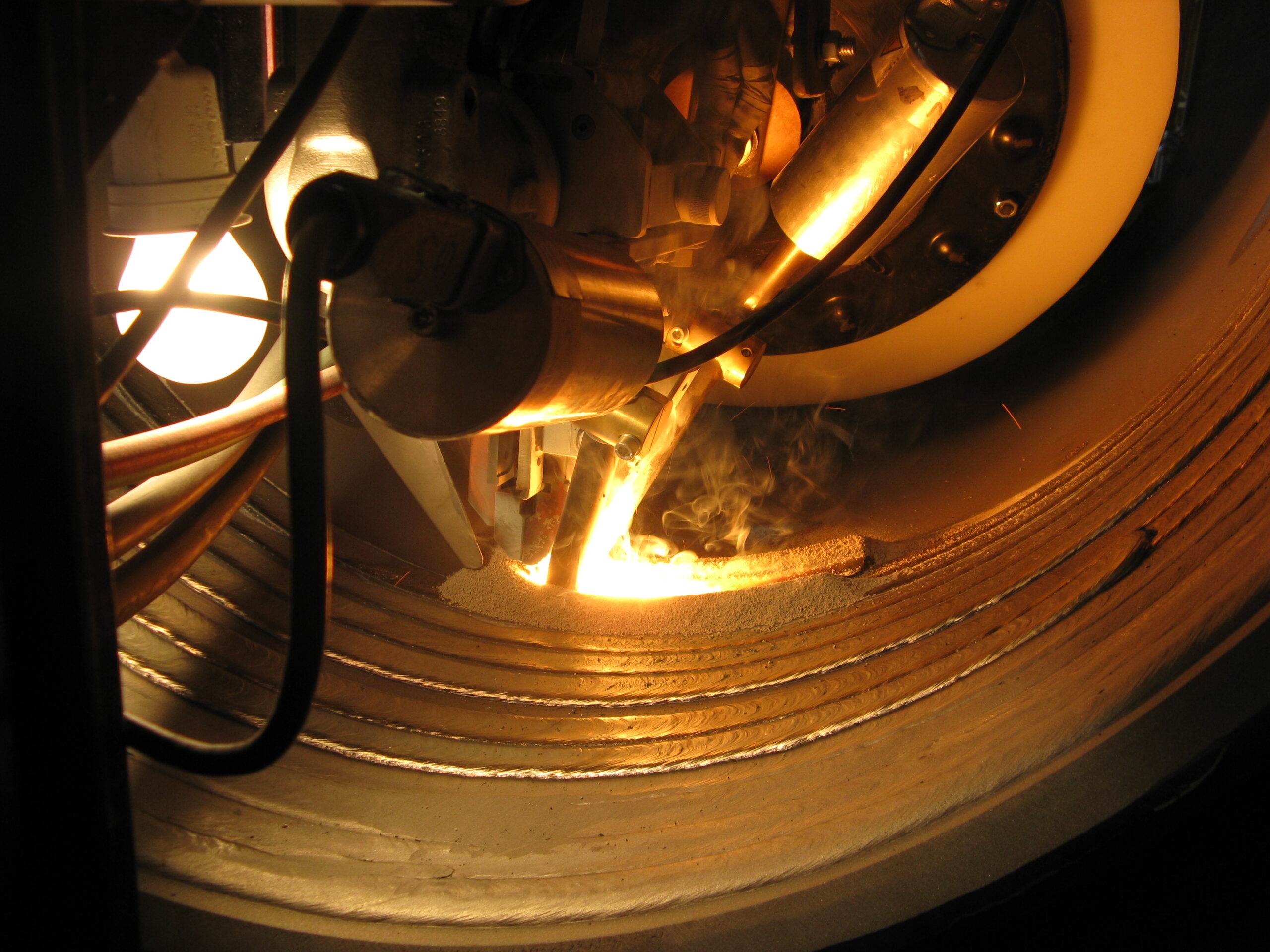

  • Cyclones are entirely lined with 1/8” thick Stellite 6 weld overlay (47,000 of weld deposit).
  • 304H Stainless steel
  • 52” diameter
  • 140 000 lbs
  • 43’-0” long

Regenerator Cyclones

System of (36) regenerator cyclones with plenum, support frame, dipleg and valves. Cyclones are shipped paired to minimize field assembly and welding.

  • 304H Stainless Steel
  • 4” diameter
  • 480 000 lbs
  • 40’-0” long

External Cyclones (Casted Refractory)

  • System of (10) external cyclones with dust hoppers, dipleg and valves.
  • Casted refractory installed in-house.
  • Carbon steel
  • 85” diameter
  • 1 440 000 lbs
  • 81’-0” long

Reactor Cyclones

  • System of (5) cyclones with internal riser, plenum, dipleg and valves.
  • System was preassembled for installation inside a FCC reactor.
  • 1 ¼ Cr – ½ Mo
  • 48” diameter
  • 90 000 lbs
  • 40’-0” long
